- HomeShopCrawler PackagesA-200 X Package
A-200 X Package
$74,900 USD
Want the flexibility of a portability package but the comfort of a truck setup? No need to compromise with the full reporting capabilities of the rugged tablet controls and a powered reel. The powered reel can roll on wheels to a remote site when needed but otherwise park on the best truck for the job that day.
Error adding item to quote
Added to quote
Powered Tether Reel with Counter
Magnetically Coupled Drives
Includes Reporting Software
Waterproof (50m/164' Depth Rating)
Full HD PT Camera
10" Rugged Tablet

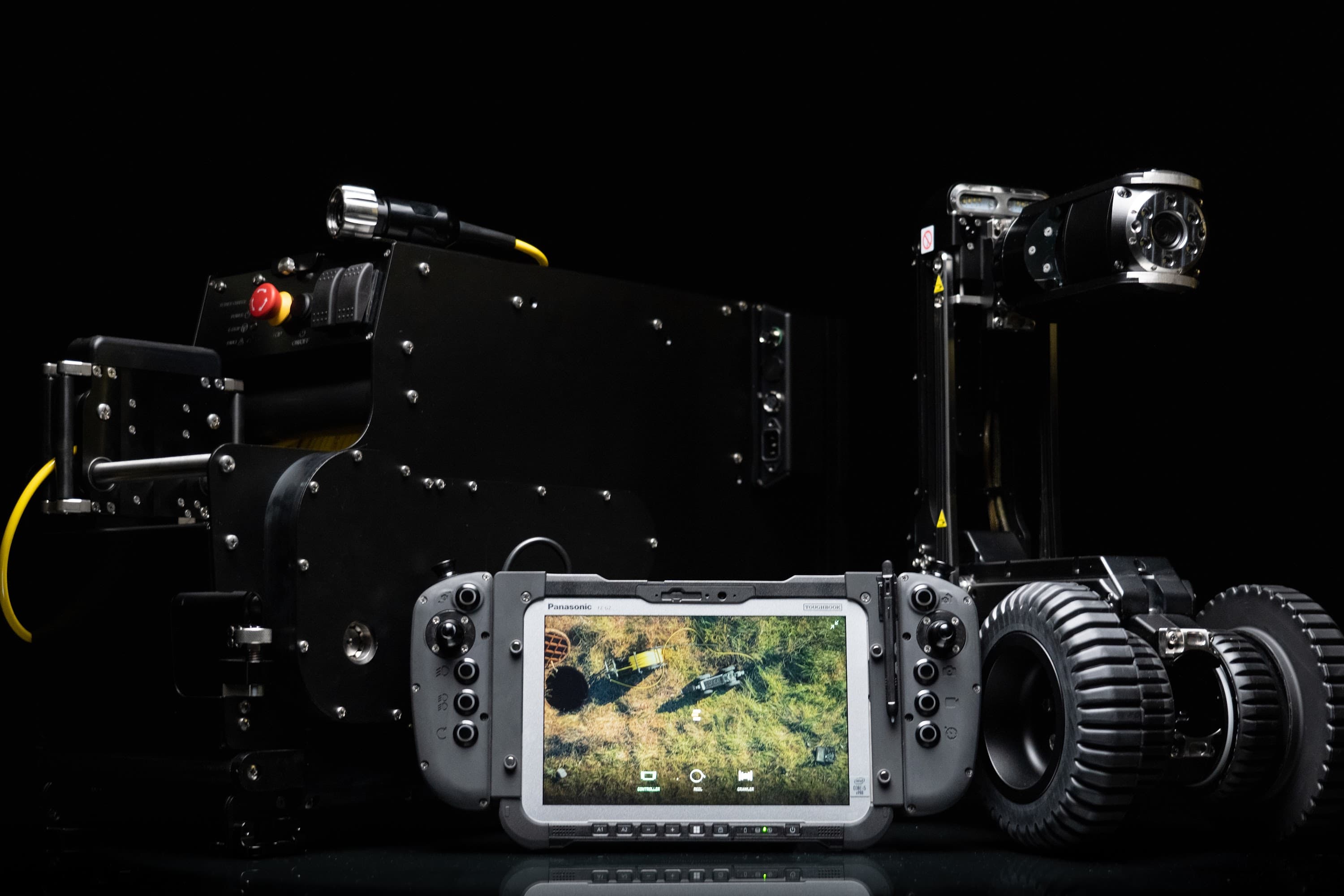

A-200 X Pipe Crawler package for sewer and stormwater pipe inspections.
The A-200 X package is an even more well equipped setup in comparison to the S package. The X comes with everything you see in the S, plus the rear camera for returning around bends or monitoring your tether on retrieval, our powered reel for easier retrieval and payout of the tether.
True Portability and Versatility
Pipe Trekker crawlers offer users the most versatile experience to capture inspection footage from anywhere. Switch from the truck with a generator to remote operations with a battery.
Rugged Design
Going into a sewer is not the most forgiving environment. Your team is tough on their equipment and expects to have it hold up. We designed Pipe Trekker crawlers to rise to the challenge.
Deliverables that make sense
There are many options for how you want to record and show inspection data. From quick and easy recordings to full NASSCO compliant PACP reporting with GIS integrations, Pipe Trekker gets you what you need.
A-200 Crawler Body
Full HD PTCamera
Laser Scaler
LED Floodlights
Robotic Lift Arm w/ LED Floodlights
310m (1,000' Tether)
Powered Tether Reel with Counter
Hybrid Power Compatible
2 Rugged Cases on Wheels
Control Software License w/ Report Generation
64 GB SD Card
Chargers
12" Rubber Wheel Kit
10" Rubber Wheel Kit
8" Carbide Wheel Kit
Dimensions (Smallest and Largest Configuration)
| Width | 6” (150mm) - 12.2” (310mm) |
|---|---|
| Height | 5.5” (140mm) - 20.6” (523mm) |
| Length | 28.2” (716mm) - 29.5” (749mm) |
| Weight (in air) | Up to 64.6 lbs (29.2 kg) |
| Materials | Stainless Steel, Machined Aluminum, Sapphire Lens Cover |
| Depth Rating | 50m (164’) Water Depth |
| Minimum Diameter | 8” (200mm) |
| Maximum Diameter (w/ Camera Head Centered) | 36” (900mm) |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Speed | Up to 12m/min |
| Warranty | 1 Year - Parts and Labor (optional 2-3 years) |
| Sensors | Incline, Roll, Leak, Pan/Tilt, Distance Counter |
| Transmitter | Sonde |
| Deployment | Lift brackets on side, lift points at front and back |
Crawler Electrical System Specifications
| System Voltage | 19.2 VDC, LiFe 6000 mAh |
|---|---|
| Battery Run Time | Up to 5 Hours |
| Hybrid Power | 75 VDC on Tether via AC input through Automatic Reel |
| Drives | Magnetically Coupled, 2 x DC Gear Motors with Gear Train |
| Steering | Skid Style |
| Pull Force | 130 lbs (580 N) |
Tether Specifications
| Max Length Available | 310m (1,100’) |
|---|---|
| Diameter | 6.5mm |
| Break Strength | 1600 lbs (725 kg) |
| Conductors | 1 Twisted Pair, Copper |
| Termination | Epoxy, with Strain Relief |
| Jacket Material | Polyurethane |
Camera Specifications
| Resolution | 1080p / 8MP |
|---|---|
| Pan | 360 Degrees Continuous |
| Tilt | +/- 140 Degrees (280 Degrees Total) |
| Zoom | 10x Optical, 120x Digital |
| Focus | Auto or Manual |
| Exposure | Auto or Manual |
| Lights | 900 Lumens; Auxiliary: 1500 Lumens |
A-200 X Pipe Crawler package for sewer and stormwater pipe inspections.
The A-200 X package is an even more well equipped setup in comparison to the S package. The X comes with everything you see in the S, plus the rear camera for returning around bends or monitoring your tether on retrieval, our powered reel for easier retrieval and payout of the tether.
True Portability and Versatility
Pipe Trekker crawlers offer users the most versatile experience to capture inspection footage from anywhere. Switch from the truck with a generator to remote operations with a battery.
Rugged Design
Going into a sewer is not the most forgiving environment. Your team is tough on their equipment and expects to have it hold up. We designed Pipe Trekker crawlers to rise to the challenge.
Deliverables that make sense
There are many options for how you want to record and show inspection data. From quick and easy recordings to full NASSCO compliant PACP reporting with GIS integrations, Pipe Trekker gets you what you need.
A-200 Crawler Body
Full HD PTCamera
Laser Scaler
LED Floodlights
Robotic Lift Arm w/ LED Floodlights
310m (1,000' Tether)
Powered Tether Reel with Counter
Hybrid Power Compatible
2 Rugged Cases on Wheels
Control Software License w/ Report Generation
64 GB SD Card
Chargers
12" Rubber Wheel Kit
10" Rubber Wheel Kit
8" Carbide Wheel Kit
Dimensions (Smallest and Largest Configuration)
| Width | 6” (150mm) - 12.2” (310mm) |
|---|---|
| Height | 5.5” (140mm) - 20.6” (523mm) |
| Length | 28.2” (716mm) - 29.5” (749mm) |
| Weight (in air) | Up to 64.6 lbs (29.2 kg) |
| Materials | Stainless Steel, Machined Aluminum, Sapphire Lens Cover |
| Depth Rating | 50m (164’) Water Depth |
| Minimum Diameter | 8” (200mm) |
| Maximum Diameter (w/ Camera Head Centered) | 36” (900mm) |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Speed | Up to 12m/min |
| Warranty | 1 Year - Parts and Labor (optional 2-3 years) |
| Sensors | Incline, Roll, Leak, Pan/Tilt, Distance Counter |
| Transmitter | Sonde |
| Deployment | Lift brackets on side, lift points at front and back |
Crawler Electrical System Specifications
| System Voltage | 19.2 VDC, LiFe 6000 mAh |
|---|---|
| Battery Run Time | Up to 5 Hours |
| Hybrid Power | 75 VDC on Tether via AC input through Automatic Reel |
| Drives | Magnetically Coupled, 2 x DC Gear Motors with Gear Train |
| Steering | Skid Style |
| Pull Force | 130 lbs (580 N) |
Tether Specifications
| Max Length Available | 310m (1,100’) |
|---|---|
| Diameter | 6.5mm |
| Break Strength | 1600 lbs (725 kg) |
| Conductors | 1 Twisted Pair, Copper |
| Termination | Epoxy, with Strain Relief |
| Jacket Material | Polyurethane |
Camera Specifications
| Resolution | 1080p / 8MP |
|---|---|
| Pan | 360 Degrees Continuous |
| Tilt | +/- 140 Degrees (280 Degrees Total) |
| Zoom | 10x Optical, 120x Digital |
| Focus | Auto or Manual |
| Exposure | Auto or Manual |
| Lights | 900 Lumens; Auxiliary: 1500 Lumens |
