Custom Pipe Inspection Truck and Van Options

Build your Truck

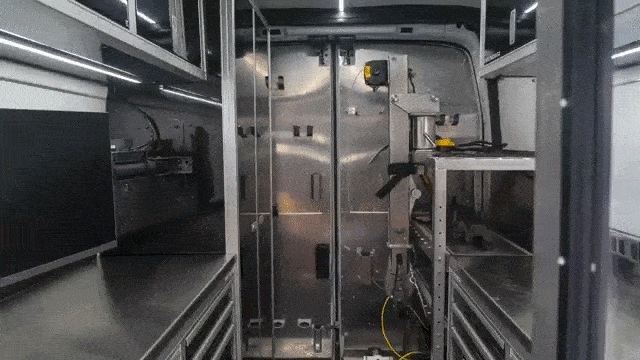

Durable Construction

No corners were cut with this well-built truck outfitting. Stainless steel & aluminum construction, including cabinetry with 500 lbs rated drawers. While some vans are outfitted with wood and plastic, Pipe Trekker’s is built to last.

Durable Construction

No corners were cut with this well-built truck outfitting. Stainless steel & aluminum construction, including cabinetry with 500 lbs rated drawers. While some vans are outfitted with wood and plastic, Pipe Trekker’s is built to last.

Built with Operator in Mind

Our truck is built to optimize the pipe inspection experience. Integrated cranes and trays make transfers from the counters to the manhole as easy as possible. Foldout 27” monitor allows both operators to see the action.

Built with Operator in Mind

Our truck is built to optimize the pipe inspection experience. Integrated cranes and trays make transfers from the counters to the manhole as easy as possible. Foldout 27” monitor allows both operators to see the action.

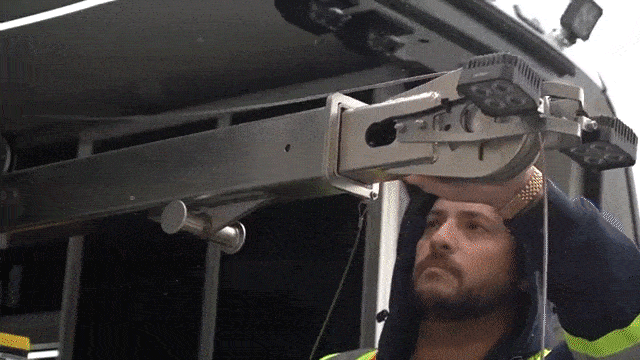

Plenty of Power & Light

With a 5000W inverter, 20 outlets and 4 USB/USB-C charging stations, power will never be a problem. Pipe Trekker trucks come equipped with under cabinet and crane lighting, rear & side floodlights, complete with a Rough Country Light control panel.

Plenty of Power & Light

With a 5000W inverter, 20 outlets and 4 USB/USB-C charging stations, power will never be a problem. Pipe Trekker trucks come equipped with under cabinet and crane lighting, rear & side floodlights, complete with a Rough Country Light control panel.

Van Specifications

General Specifications
Length: 235.5 in
Width with Mirrors: 97.4 in
Width without Mirrors: 81.3 in
Width without Mirrors and Door Handles (SRW): 79.6 in
Height (Cargo Van/Crew Van): 109.6/ 109.2 in
Front Track: 68.2 in
Rear Track: 68.6 in
Front Overhang: 40.3 in
Wheelbase: 147.6 in
Rear Overhang: 47.6 in
Rear Cargo Door Opening Width: 61.7 in
Cargo Width Between Wheelhouse: 54.8 in
Rear Cargo Door Opening Height: 74.3 in
Max. Cargo Load Width (excluding wheelhouse): 70.2 in
Max. Cargo Height (Cargo Van/ Crew Van): 81.5 in
Max. Cargo Length at Floor (Cargo Van/ Crew Van): 143.7/ 108.0 in
Max. Cargo Length at Belt (Cargo Van/ Crew Van): 133.6/ 96.6 in
Load Height (Curb): 28.7 in

Van Construction Upgrades
Durable Stainless Steel & Aluminum Construction
250 lbs. rated drawers
Integrated Crane and Trays to make crawler transfers easy
Water Cleaner Station
Insulated, Rockwool Insulation

Electrical & Lighting System
Under Cabinet Lighting
Crane lighting
Rear and Side Spotlights
20 Outlets and 4 USB/USB-C
Rough Country Light Controller
5000W Inverter
Water Cleaner Station

Office Station
Flip out rear facing 27" Monitor
2x 24" Monitors
CPU Storage

Deep Trekker reserves the right to amend these specifications at any time without notice.
