A-200 S Package
$44,900 USD
Want to take on a wide variety of inspection jobs? Add the versatile and tough A-200 pipe crawler. The S package has everything you need to take on a wide range of mainline inspections, capturing full HD footage along the way.
Error adding item to quote
Added to quote
Up to 8 Hour Battery Life
Hybrid & Truck Mount Options
Magnetically Coupled Drives
Integrations with Software

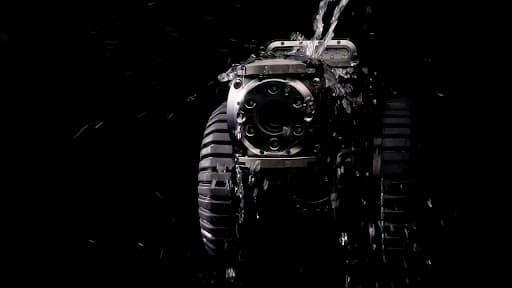

Waterproof (50m/164' Depth Rating)
Full HD PT Camera

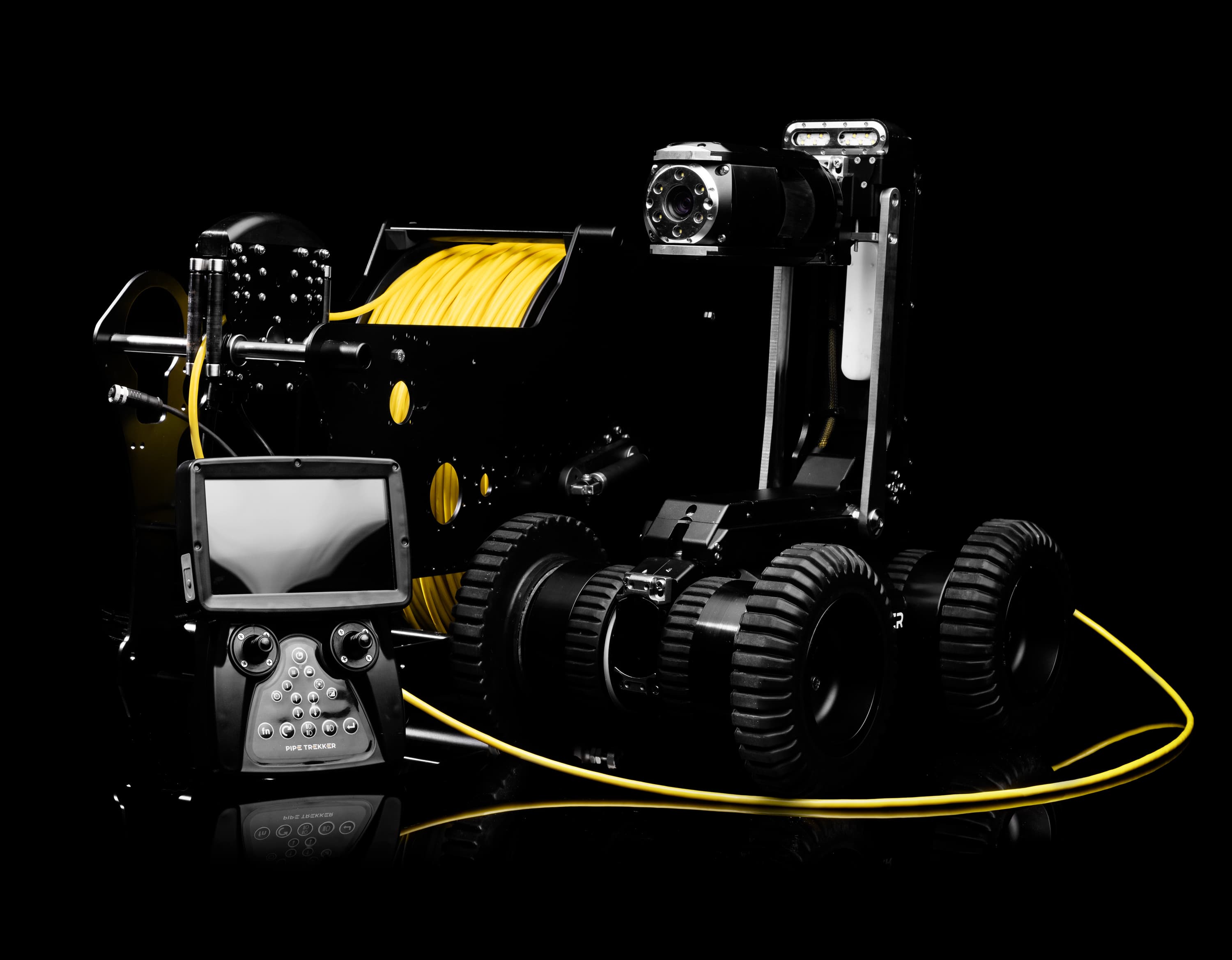

A-200 S Pipe Crawler package for easy sanitary sewer, stormwater and confined space inspections.
True Portability and Versatility
Pipe Trekker crawlers offer users the most versatile experience to capture inspection footage from anywhere. Switch from the truck with a generator to remote operations with a battery.
Rugged Design
Going into a sewer is not the most forgiving environment. Your team is tough on their equipment and expects to have it hold up. We designed Pipe Trekker crawlers to rise to the challenge.
Deliverables that make sense
There are many options for how you want to record and show inspection data. From quick and easy recordings to full NASSCO compliant PACP reporting with GIS integrations, Pipe Trekker gets you what you need.
A-200 Crawler Body
Full HD PTCamera
Laser Scaler

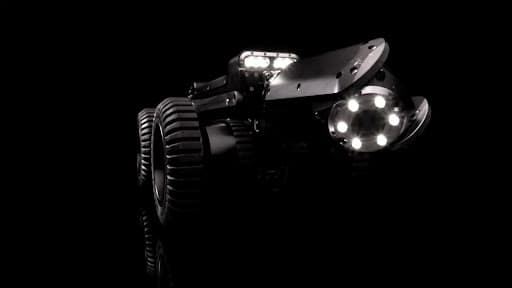

LED Floodlights
Robotic Lift Arm w/ LED Floodlights
200m (656' Tether)

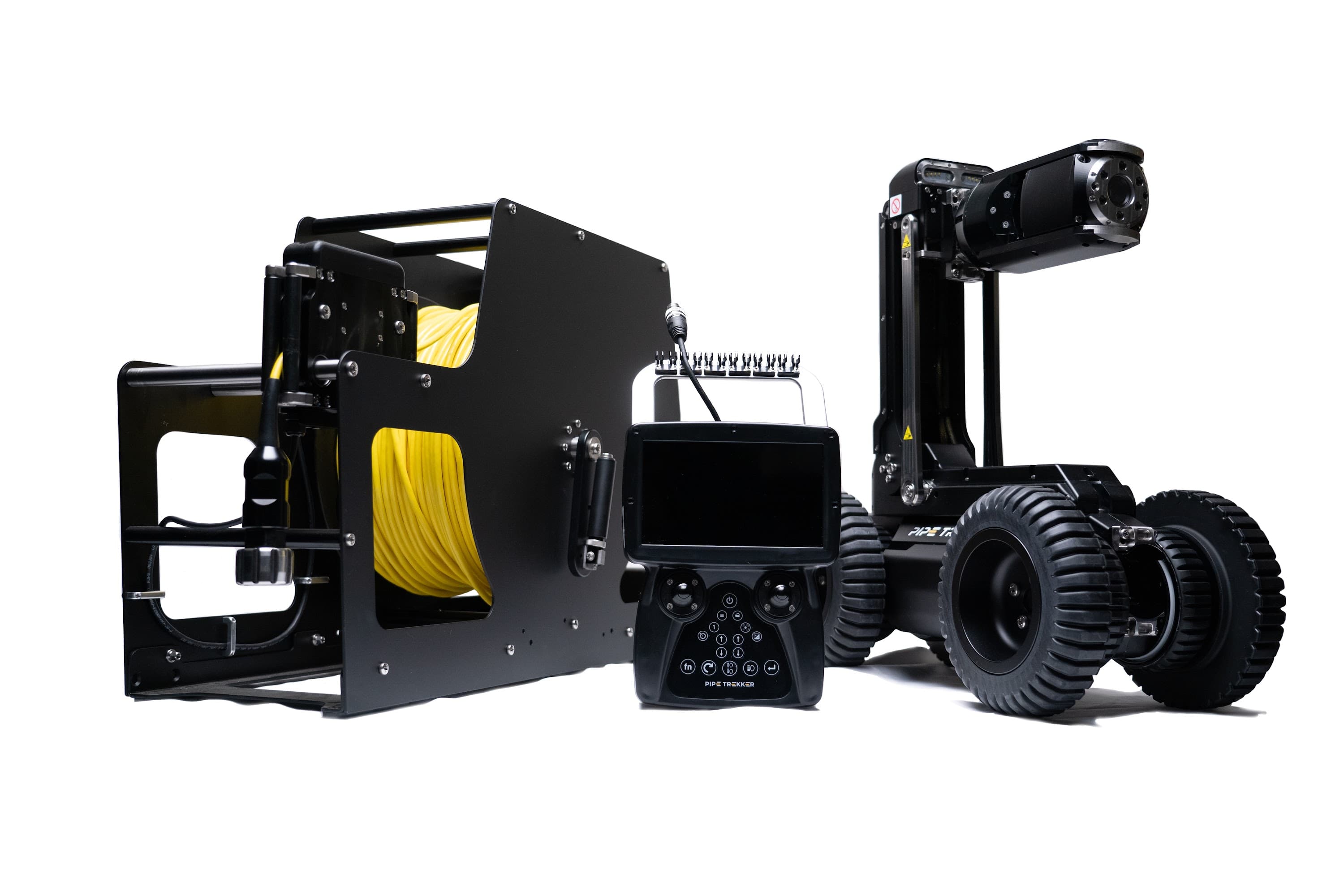

Tether Reel with Counter
2 Rugged Cases on Wheels

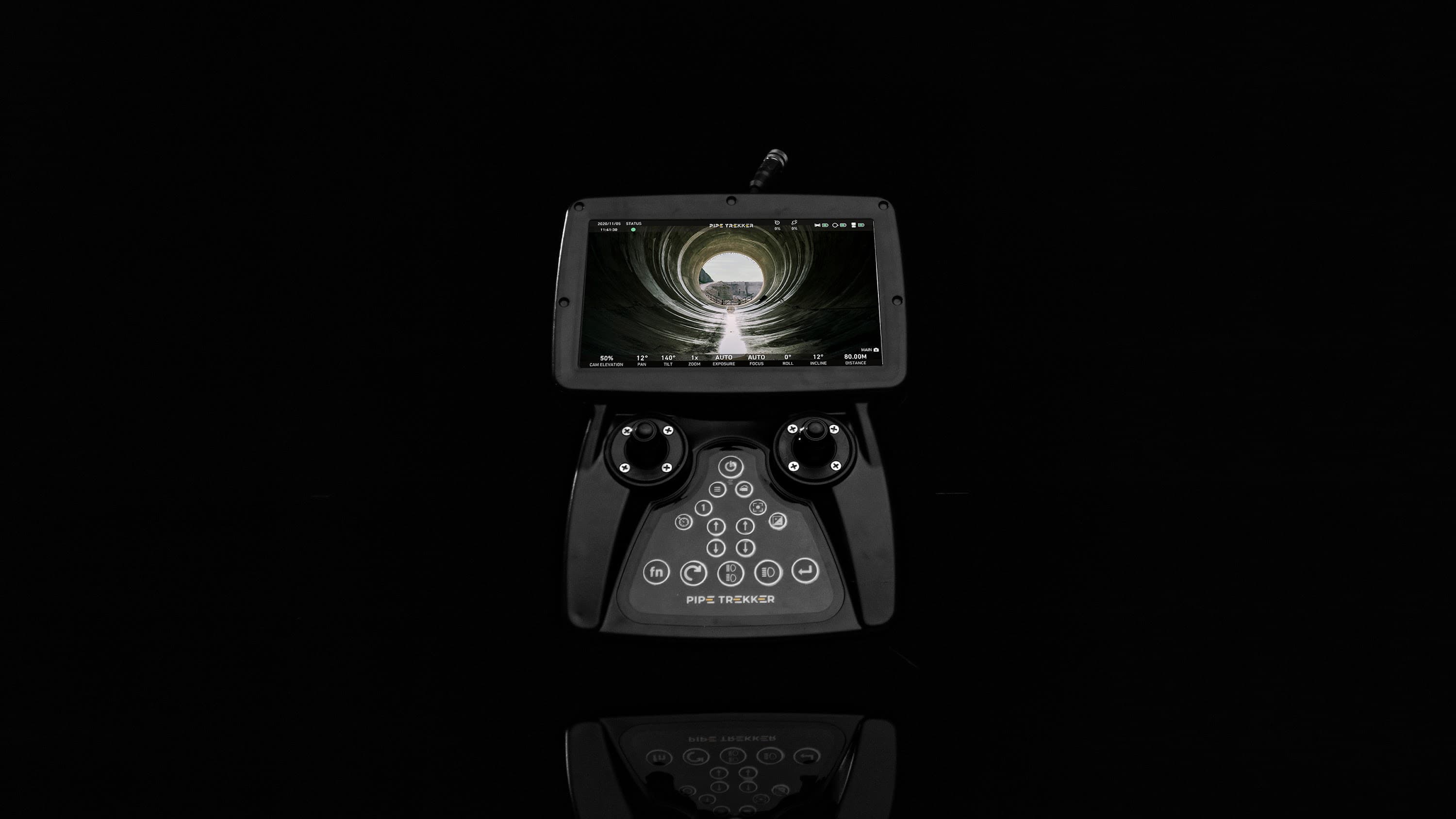

7" LCD Handheld Controller
64 GB SD Card
Sun Shield
Neck Strap
Chargers
10" Rubber Wheel Kit
12" Rubber Wheel Kit
Dimensions (Smallest and Largest Configuration)
| Width | 6” (150mm) - 12.2” (310mm) |
|---|---|
| Height | 5.5” (140mm) - 20.6” (523mm) |
| Length | 28.2” (716mm) - 29.5” (749mm) |
| Weight (in air) | Up to 64.6 lbs (29.2 kg) |
| Materials | Stainless Steel, Machined Aluminum, Sapphire Lens Cover |
| Depth Rating | 50m (164’) Water Depth |
| Minimum Diameter | 8” (200mm) |
| Maximum Diameter (w/ Camera Head Centered) | 36” (900mm) |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Speed | Up to 12m/min |
| Warranty | 1 Year - Parts and Labor (optional 2-3 years) |
| Sensors | Incline, Roll, Leak, Pan/Tilt, Distance Counter |
| Transmitter | Sonde |
| Deployment | Lift brackets on side, lift points at front and back |
Crawler Electrical System Specifications
| System Voltage | 19.2 VDC, LiFe 6000 mAh |
|---|---|
| Battery Run Time | Up to 5 Hours |
| Hybrid Power | 75 VDC on Tether via AC input through Automatic Reel |
| Drives | Magnetically Coupled, 2 x DC Gear Motors with Gear Train |
| Steering | Skid Style |
| Pull Force | 130 lbs (580 N) |
Tether Specifications
| Max Length Available | 310m (1,100’) |
|---|---|
| Diameter | 6.5mm |
| Break Strength | 1600 lbs (725 kg) |
| Conductors | 1 Twisted Pair, Copper |
| Termination | Epoxy, with Strain Relief |
| Jacket Material | Polyurethane |
Camera Specifications
| Resolution | 1080p / 8MP |
|---|---|
| Pan | 360 Degrees Continuous |
| Tilt | +/- 140 Degrees (280 Degrees Total) |
| Zoom | 10x Optical, 120x Digital |
| Focus | Auto or Manual |
| Exposure | Auto or Manual |
| Lights | 900 Lumens; Auxiliary: 1500 Lumens |
Controller Specifications
| Display | 7” LCD |
|---|---|
| Joysticks | Hall Effect |
| Outputs | HDMI, Ethernet, USB, SD |
| Battery Life | Up to 5 Hours / Charge during operation for continuous |
| Software | Bridge, WinCan or other software optional integrations |
