A-150 X Package
The next generation of small diameter crawlers. The A-150 X Package offers the flexibility of a portable crawler setup without the need to compromise on features. Full reporting capability and expandability from the rugged tablet controller and Pipe Trekker Control Software and a powered reel for easy retrieval.
Error adding item to quote
Added to quote
Hybrid Power Options Available
Hybrid & Truck Mount Options
Integrations with Software
Waterproof (50m/164' Depth Rating)
4k Camera
Full HD PT Camera
A-150 X mobile portable pipe crawler for 6" pipes and up.
The A-150 is the most portable and easy to operate crawler for between 6" and 24" (150-600mm) diameter pipes. The A-150 is fully steerable with a compact track belt driving the vehicle. This track belt enables the crawler to get over disjoints and obstacles as well as mud and debris. The wheel kits add to the outside to increase traction, stability and to raise the camera up higher. The X package includes carbide wheel options for traction in PVC and clay pipe. The camera is also adjustable in height with the robotic lift arm, you can set the head to be in the center of up to a 24" (600mm) pipe.

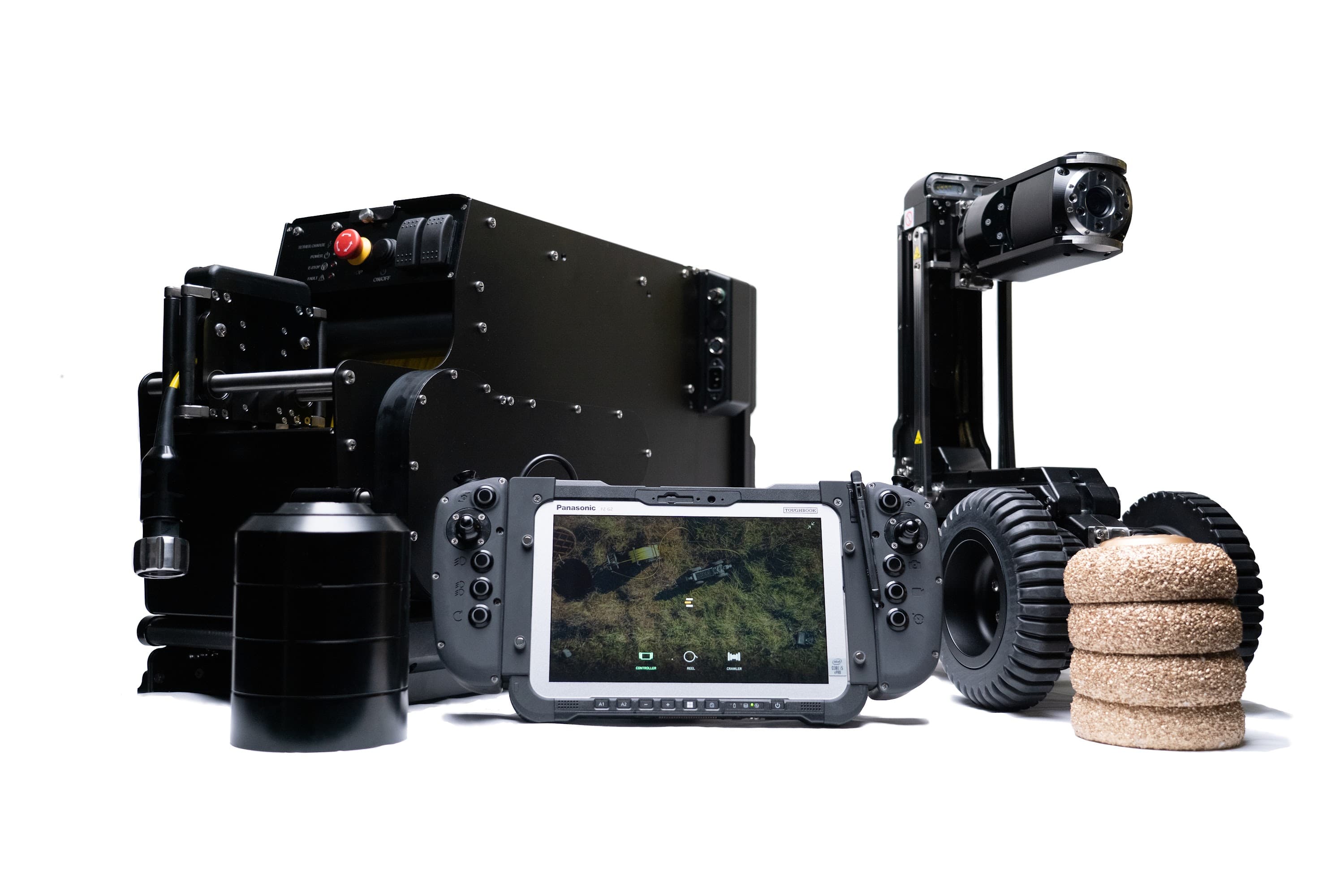

The package includes a powered counter reel that indicates on screen the distance you have travelled in the pipe so you can determine where in the pipe defects are when you find them, as well as retrieves the crawler automatically and pays the tether out as you drive to help with traction. The A-150 has a full HD pan tilt camera that allows you to rotate the camera 360 degrees and tilt the camera 270 degrees to make a full, thorough inspection. The crawler and handheld controller are battery powered, allowing you to deploy from even the most remote locations. The powered reel allows for hybrid power capability, to charge the crawler for infinite run time. The tablet controller comes equipped with Pipe Trekker's Control software, which has full report generation capabilities built in natively.
True Portability and Versatility
Pipe Trekker crawlers offer users the most versatile experience to capture inspection footage from anywhere. Switch from the truck with a generator to remote operations with a battery.
Rugged Design
Going into a sewer is not the most forgiving environment. Your team is tough on their equipment and expects to have it hold up. We designed Pipe Trekker crawlers to rise to the challenge.
A-150 Crawler Body
Full HD PTCamera
LED Floodlights
Robotic Lift Arm w/ LED Floodlights
310m (1,000' Tether)
Powered Tether Reel with Counter
Hybrid Power Compatible
10" Rugged Tablet
Control Software License w/ Report Generation
2 Rugged Cases on Wheels
64 GB SD Card
Sun Shield
Neck Strap
Chargers
10" Rubber Wheel Kit
12" Rubber Wheel Kit
8" Carbide Wheel Kit
10" Carbide Wheel Kit
Dimensions (Smallest and Largest Configuration)
| Width | 5.4” (137mm) - 8.3” (152mm) |
|---|---|
| Height | 3.9” (99mm) - 6” (388mm) |
| Length | 21.2” (539mm) - 21.3” (541mm) |
| Weight (in air) | Up to 43.5 lbs (19.7 kg) |
| Materials | Stainless Steel, Machined Aluminum, Sapphire Lens Cover |
| Depth Rating | 50m (164’) Water Depth |
| Minimum Diameter | 6” (152.4mm) |
| Maximum Diameter (w/ Camera Head Centered) | 24” (609.6mm) |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Speed | Up to 19m/min |
| Warranty | 1 Year - Parts and Labor (optional 2-3 years) |
| Sensors | Incline, Roll, Leak, Pan/Tilt, Distance Counter |
| Transmitter | Sonde |
| Deployment | Lift brackets on side, lift points at front and back |
Crawler Electrical System Specifications
| Battery Capacity | 19.2 VDC, LiFePO4 3000 mAh |
|---|---|
| Battery Run Time | Up to 5 Hours |
| Hybrid Power | 75 VDC on Tether via AC input through Automatic Reel |
| Drives | Shaft seal, 2 x DC Gear Motors with Gear Train |
| Steering | Skid Style |
| Pull Force | 45 lbs (at max weight and 8in wheels) |
Tether Specifications
| Max Length Available | 310m (1,100’) |
|---|---|
| Diameter | 6.5mm |
| Break Strength | 1600 lbs (725 kg) |
| Conductors | 1 Twisted Pair, Copper |
| Termination | Epoxy, with Strain Relief |
| Jacket Material | Polyurethane |
Camera Specifications
| Resolution | 1080p / 8MP |
|---|---|
| Pan | Included (DTCam, 1080P, no zoom) |
| Tilt | +/- 140 Degrees (280 Degrees Total) |
| Lights | 600 Lumens; Auxiliary: 900 Lumens |
